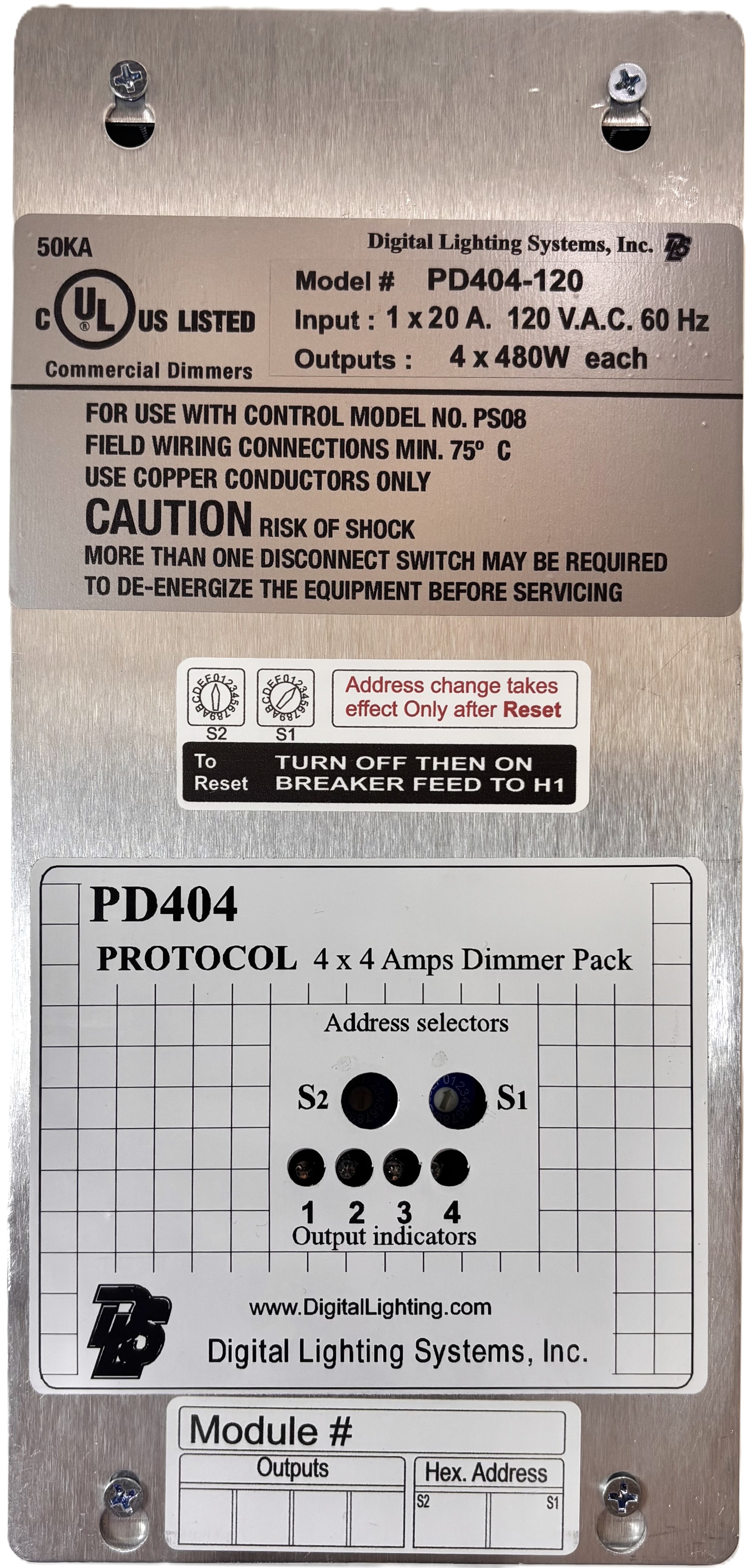

 PD404 PROTOCOL Dimmer & Switch pack
 4 x 500 Watts each. @ 120 V AC ; 4 x 4 Amps  ( available in 220 / 240 / 277 V AC )

Dimmers and Switches PROTOCOL Lighting Control Systems                                       Made in the USA

PD 404 Dimmers Features:

  • 4 dimmers or switches PROTOCOL compatible.

  • Input : 1 x 20 Amps from Breaker Panel.

  • Outputs : 4 x 500 Watts @ 120 V AC

  • Controls all kinds of TRIAC OR SCR dimmable loads.

    ( Leading edge dimming, Standard Phase control )

  • Automatic 60 / 50 Hz frequency detection.

  • Self contained dimmers with built in processing.

  • Addressable with 2 Hexadecimal rotary switches on front panel.

  • Accepts 63 independent addresses and 63 dependent addresses.

  • Dimmers DATA connects with CAT5 / RJ45 network cables.

  • Outputs could be used as Dimmers or Switches  in same module.

  • Each Dimmer has 254 Preset scenes stored in nonvolatile memory.

  • Individual output Min and Max electronic trim adjustment.

  • Very thorough built-in diagnostics.

  • Front panel LED output monitors.

  • Compact size ; wall mountable.

  • PD404 overall dimensions : 11.50" H x 4.60 W x 3.30" D.

  • Durable aluminum wall-mount enclosure engineered for heat dissipation..

  • Also available in 120VAC, ( 220 VAC - 277 VAC ), 24V AC, & 12 V AC  versions.

  • Simple to install and to operate.

  • UL-Listed for both US & Canada (120VAC, 24VAC, 12VAC)

PD404 Specifications Sheets

PD404 User Manual:



$417.00

Made in the USA

PD Dimmer and Switch Packs interconnect using standard CAT5 network cables, patch or cross,  ( CAT 5, Brown pair used only ) .

Simply use the  3 foot network cable supplied with each PD unit to daisy chain to the next PD or to connect to the system's data and power hub DB44.

more details.







CAT5 wiring instruction used in PROTOCOL systems : RJ45-PD-PT.pdf

PIN 7 = -DATA ; PIN 8 = + DATA  for PD units.

Go green by using LED lights with our LED lighting controllers & PWM dimmers for all applications where LED dimming is required
