DIGTAN4-DMX
DMX to 0-10Vconverter; 4 DMX512 channels to 0-10V Analog signal dimmers |
|
DMX to 0-10V control signal converter
Converts 4 DMX512 consecutive
channels to 4 x 0-10V Analog control
channels to dim 0-10V dimmable LED fixtures from a DMX control system
or console.
Also provides Four 5VDC signals to switch power relays at adjustable low dimming levels for each outputs. INPUT control : DMX 512 standard OUTPUTS control: Sinking 4 channels min 0.6 VDC Max 10 VDC Analog control 30 mA maximum per channel ( 20 fixtures per channel ) Power requirements: 14 to 24 VDC Min 300 mAmps. ( power supply not included )
|
|

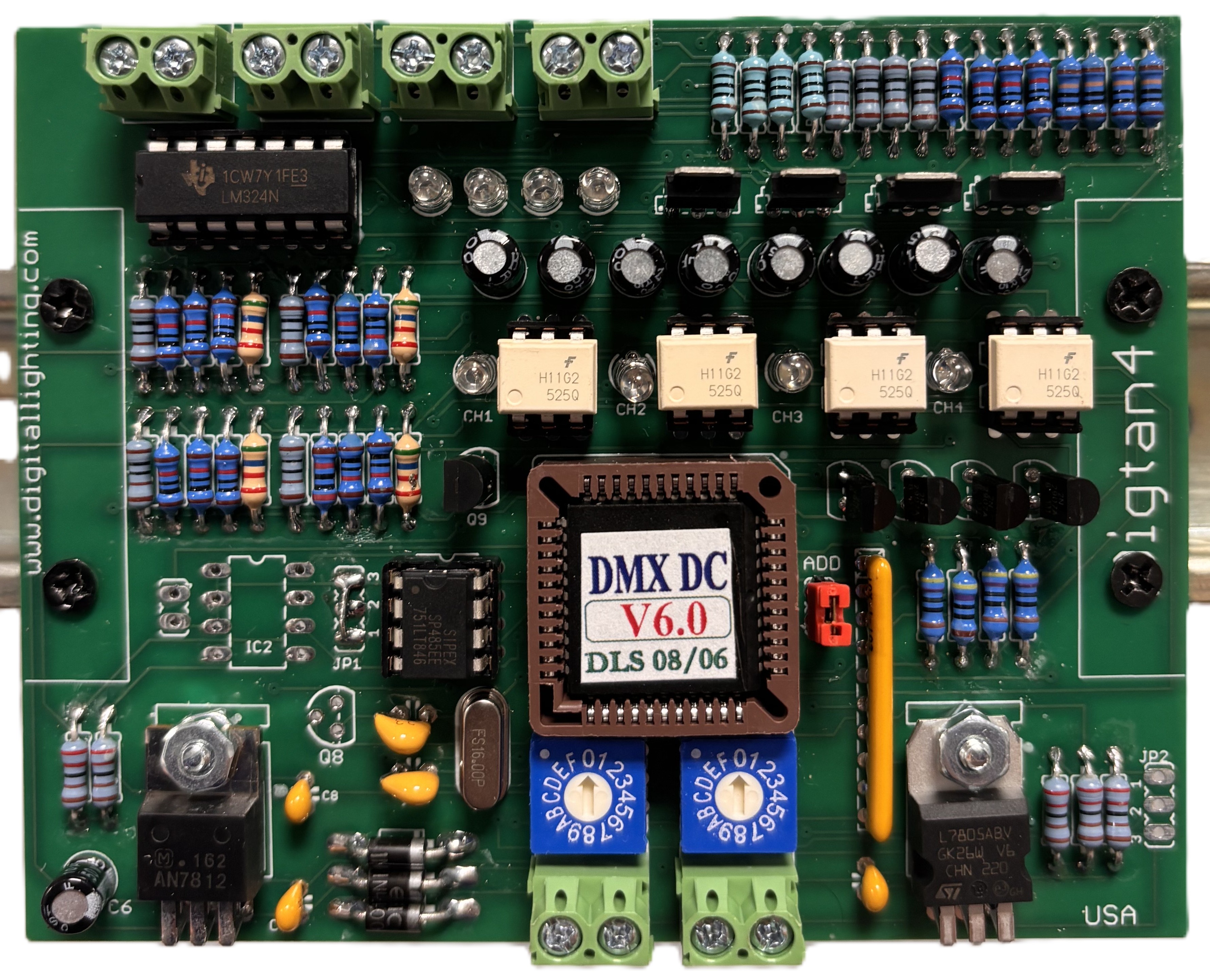

Provided as a PC board with DIN RAIL compatible brackets. OD: 4.25" x 3.50" x 1" ( without brackets ) User Manual DIGTAN4-DMX-D $ 150.00
User manual for old DIGTAN4-DMX to 0-10V converter MADE IN USA |
|
Go green use LED lights with LED dimmers to save energy and the environment. Digital Lighting Systems,inc: (305) 969-8442, info@digitallighting.com BACK TO Analog 0-10V dimmers |
