               Analog controlled 0-10V  Dimmers                       Go here for PWM DC voltage and LED dimmers

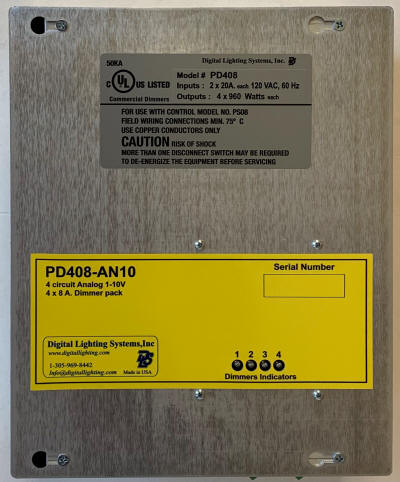

PD408-AN10: 4 x 1000 W. dimmers @ 120 V ; Analog 0-10V Dimmer Pack

PD408-AN10 Dimmer pack is designed for architectural dimming from standard 0-10V wall dimmers or controllers

MAIN FEATURES

  • 4 channel x 1000 W Dimmer or switch pack.

  • Dimmer or Switch selection with adjustable Switch level.

  • Universal dimmers for LED, Fluorescent, Low-Voltage Transformers.

  • Simple to Install and Operate.

  • Two Year Limited Warranty on Parts and Labor.

  • 120VAC, ( 220 VAC - 277 VAC ), 24V AC, & 12 V AC  versions.

  • Suitable for dimming Triac dimmable  L E D & CFL bulbs



PD408-AN10 USER MANUAL



PD408-AN10-277  USER MANUAL



PD408-AN10-120 ( 4 x 1000 W @ 120 VAC)  $498.00

PD408-AN10-277 ( 4 x  2200W @ 277 VAC)  $598.00



Made in the USA




SPECIFICATIONS

  • Heavy-Duty Outputs, Dims 4 x 8 Amp. loads

  • ( 4 dimmers x 1000 W @ 120 VAC ).

  • Active DC component protection for Inductive Loads.

  • Suitable for all TRIAC dimmable loads including MLV & ELV (Magnetic Low Voltage & Electronic Low Voltage )

  • compatible with 0-10V analog lighting controllers & Energy Management systems.

  • Compact Size, 11.75" H x 8.30" W x 4.12" D Wall-Mount Aluminum Enclosure.

  • Available in 12, 24, 120 and ( 220 - 277 V AC ) Versions.

Back to 0 -10 V Analog dimmers selection page
